Grupos electrógenos
PTO

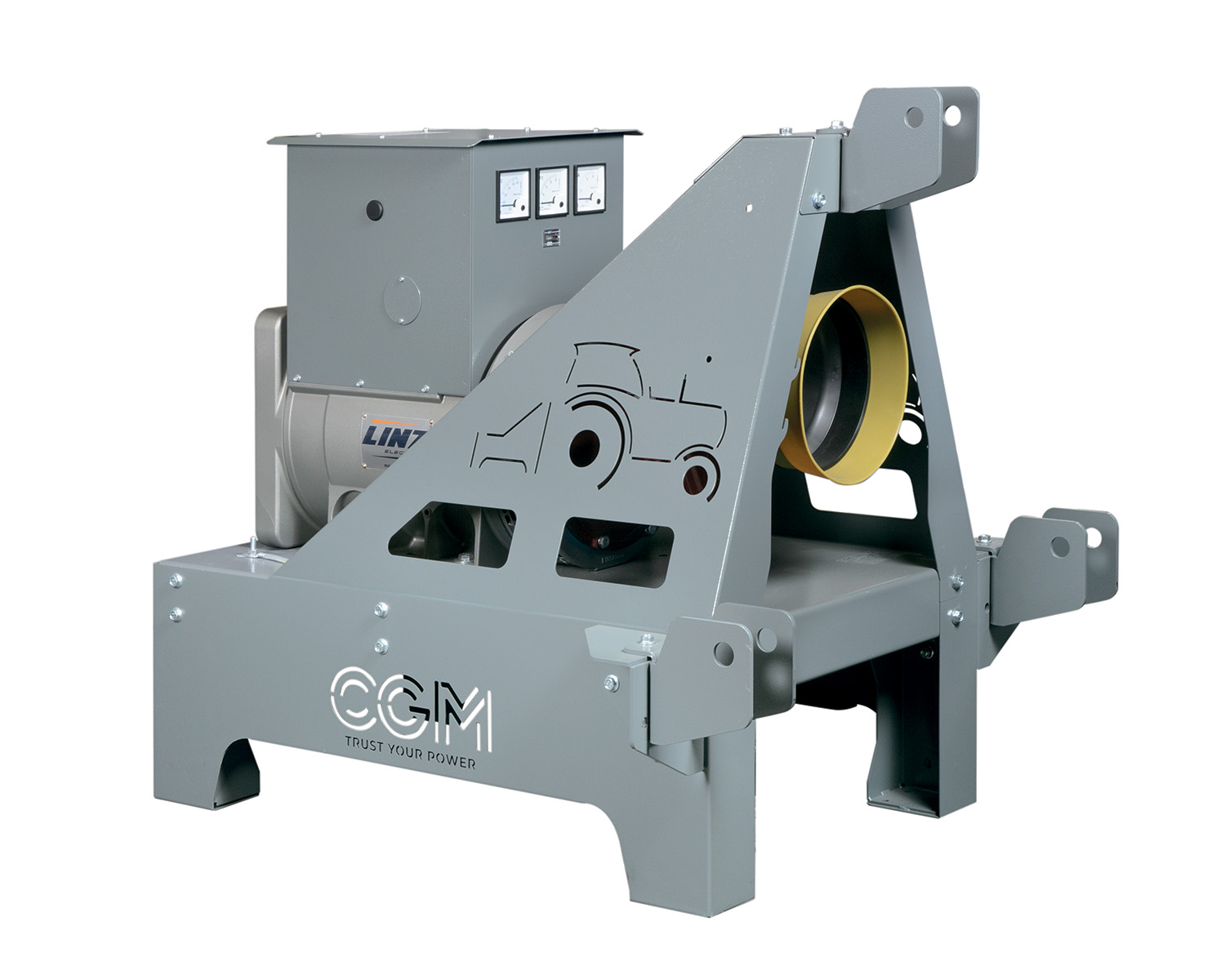

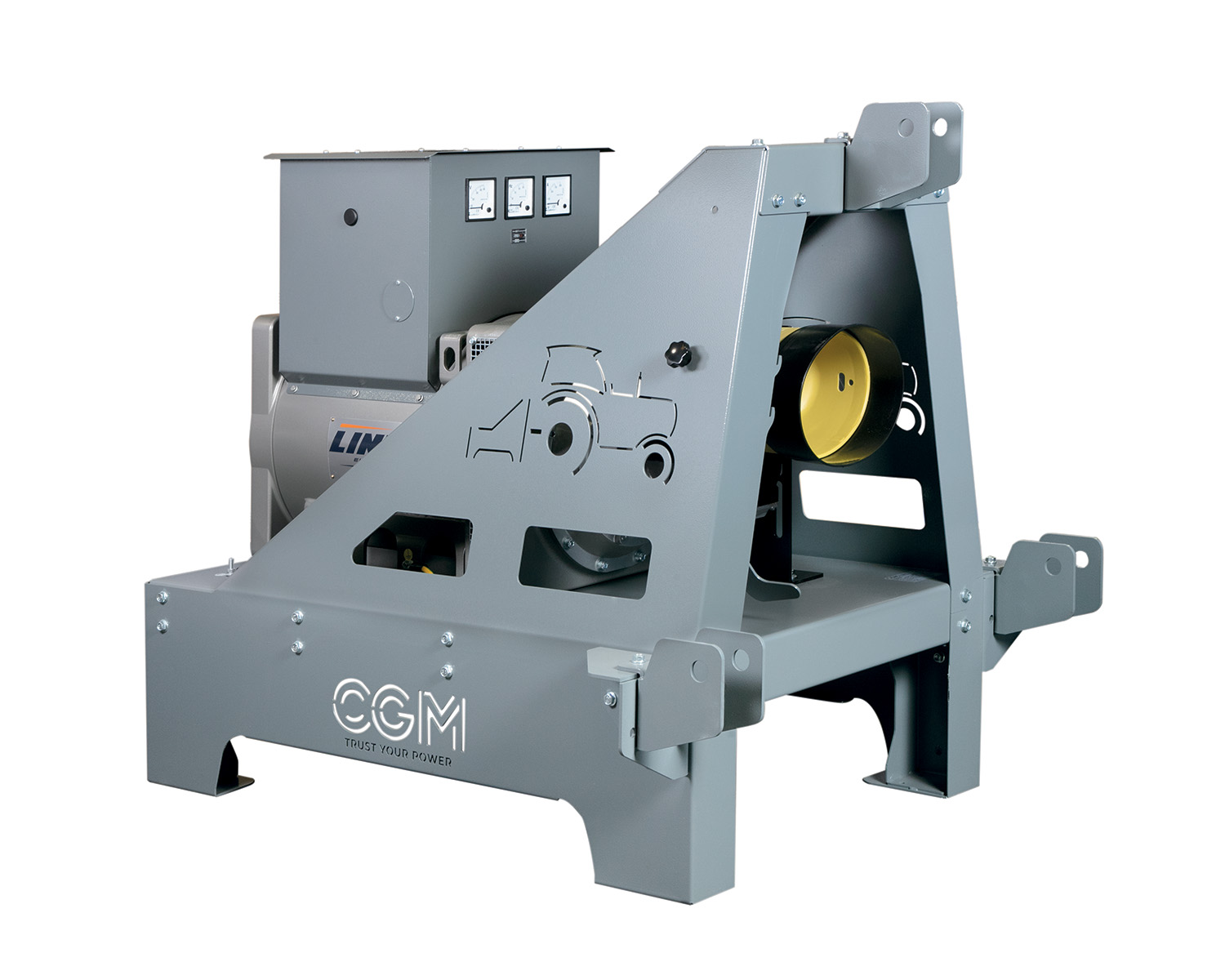

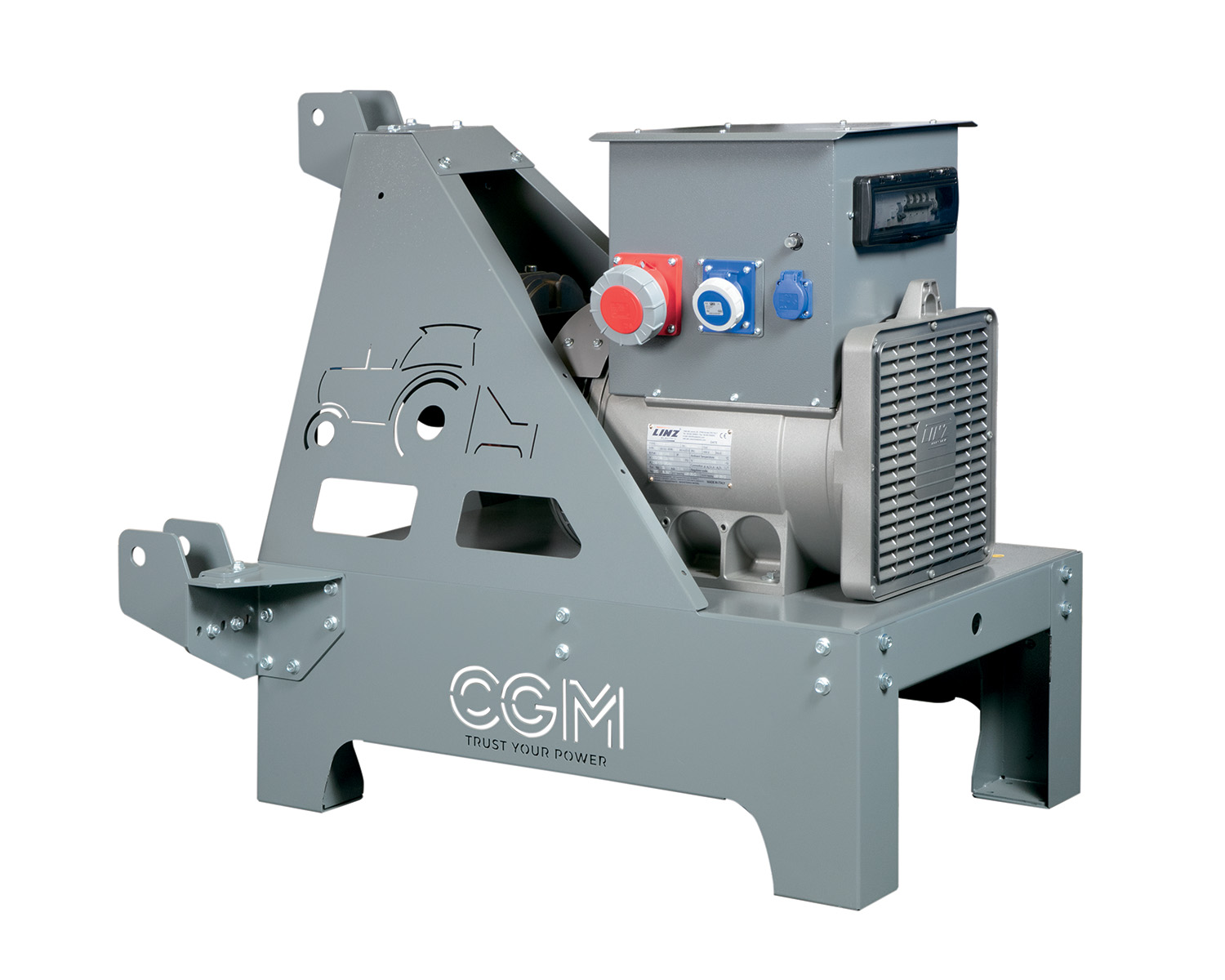

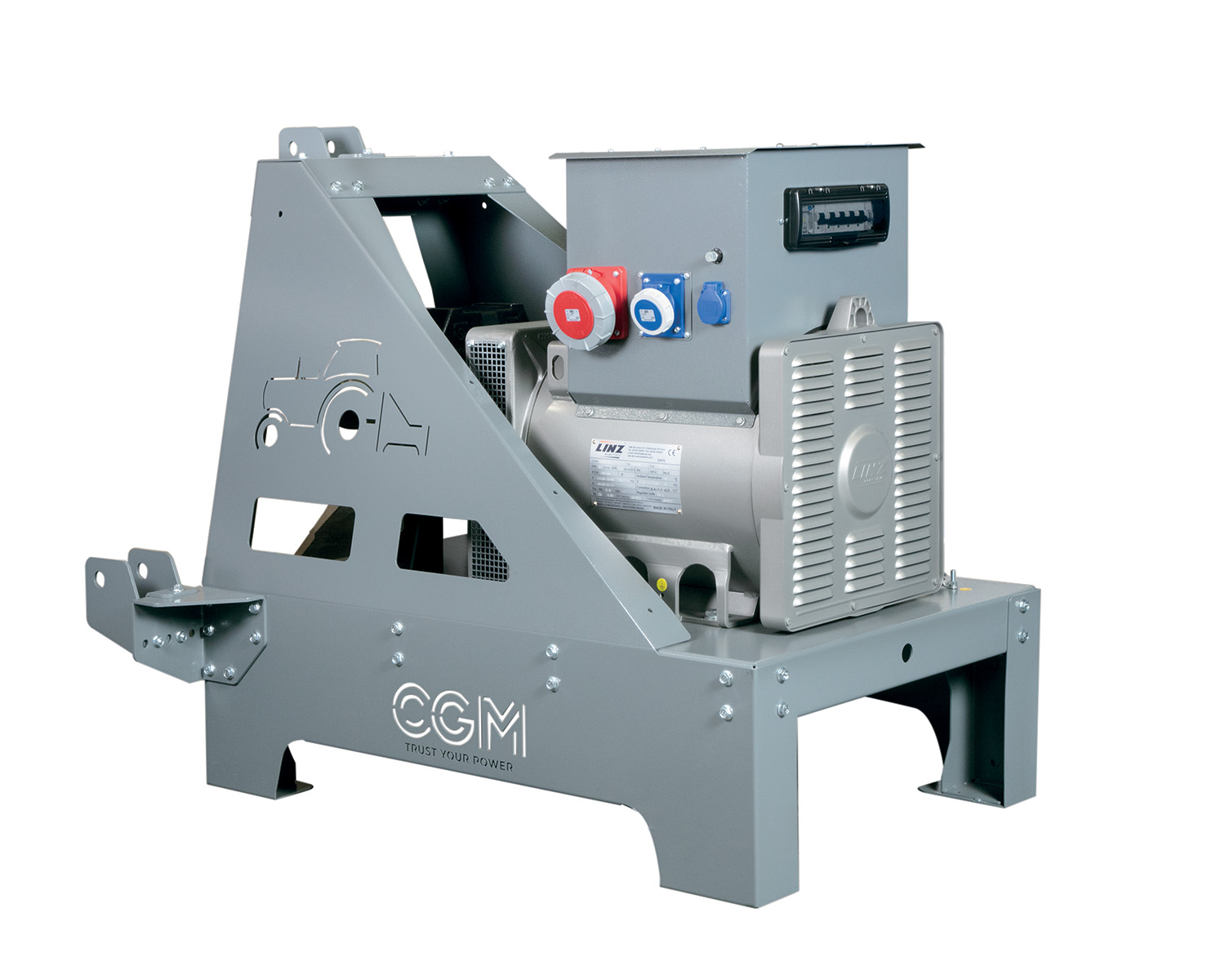

Se trata de una categoría de grupos electrógenos compactos y fáciles de utilizar usar. Son generadores equipados con una base de enganche de 3 puntos para su fácil montaje cualquier tractor.
1500 rpm
3000 rpm
características técnicas
Cuadro de mando
- Cuadro manual completo de AVR.
- Interruptor magnetotérmico y diferencial de protección.
- Voltímetro.
- Frecuencímetro.
- Amperímetro.
- 3 tomas según normas CEE
potencias
– Potencia: de 10 kVA a 160 kVA.
OPCIONES
– Versión IP44
– Kit con 4 ruedas
– Kit de remolque lento
– Kit rollbar en el cuadro
– DMK70
Especificaciones técnicas
gama PTO
| Modelo | PRP | STYB | RPM | Hp trattore | Peso | Dimensiones | Cuadro | |||
| kVA | kW | kVA | kW | HP | Kg | mm | ||||
| 10TR |
|
10 | 8 | 11 | 8.8 | 435 | 20 | 95 | 1150x960x1030H | 1x16A 5P CEE + 1x16A 3P CEE +1xSCHUKO+differential breaker +Volmeter Ammeter and Frequencymeter |
| 10TRL |
|
10 | 8 | 11 | 8.8 | 430 | 20 | 135 | 1150x960x1030H | 1x16A 5P CEE + 1x16A 3P CEE +1xSCHUKO+differential breaker +Volmeter Ammeter and Frequencymeter |
| 15TRL |
|
15 | 12 | 16.5 | 13.2 | 430 | 30 | 150 | 1150x960x1030H | 1x32A 5P CEE + 1x16A 3P CEE +1xSCHUKO+differential breaker +Volmeter Ammeter and Frequencymeter |
| 16TR |
|
16 | 12.8 | 17.5 | 14 | 435 | 30 | 125 | 1150x960x1030H | 1x32A 5P CEE + 1x16A 3P CEE +1xSCHUKO+differential breaker +Volmeter Ammeter and Frequencymeter |
| 20TRL |
|
20 | 16 | 22 | 17.6 | 430 | 45 | 205 | 1150x960x1030H | 1x32A 5P CEE + 1x16A 3P CEE +1xSCHUKO+differential breaker +Volmeter Ammeter and Frequencymeter |
| 22TR |
|
22 | 17.6 | 24.2 | 19.3 | 435 | 45 | 140 | 1150x960x1030H | 1x32A 5P CEE + 1x16A 3P CEE +1xSCHUKO+differential breaker +Volmeter Ammeter and Frequencymeter |
| 27TR |
|
27 | 21.6 | 29.7 | 23.7 | 435 | 45 | 150 | 1150x960x1030H | 1x63A 5P CEE + 1x16A 3P CEE +1xSCHUKO+differential breaker +Volmeter Ammeter and Frequencymeter |
| 30TR |
|
30 | 24 | 33 | 26.4 | 435 | 60 | 210 | 1150x960x1030H | 1x63A 5P CEE + 1x16A 3P CEE +1xSCHUKO+differential breaker +Volmeter Ammeter and Frequencymeter |
| 30TRL |
|
30 | 24 | 33 | 26.4 | 430 | 60 | 240 | 1150x960x1030H | 1x63A 5P CEE + 1x16A 3P CEE +1xSCHUKO+differential breaker +Volmeter Ammeter and Frequencymeter |
| 40TR |
|
40 | 32 | 44 | 35.2 | 435 | 75 | 233 | 1150x960x1030H | 1x63A 5P CEE + 1x16A 3P CEE +1xSCHUKO+differential breaker +Volmeter Ammeter and Frequencymeter |
| 42TRL |
|
42 | 33.6 | 46.2 | 37 | 430 | 80 | 320 | 1150x960x1030H | 1x63A 5P CEE + 1x16A 3P CEE +1xSCHUKO+differential breaker +Volmeter Ammeter and Frequencymeter |
| 60TRL |
|
60 | 48 | 66 | 52.8 | 395 | 120 | 425 | 1320x990x1100H | 1x125A 5P CEE + 1x16A 3P CEE +1xSCHUKO+differential breaker +Volmeter Ammeter and Frequencymeter |
| 75TRL |
|
75 | 60 | 82.5 | 66 | 395 | 130 | 440 | 1320x990x1100H | 1x125A 5P CEE + 1x16A 3P CEE +1xSCHUKO+differential breaker +Volmeter Ammeter and Frequencymeter |
| 85TRL |
|
85 | 68 | 93.5 | 74.8 | 395 | 150 | 450 | 1350x1090x1140H | 1x125A 5P CEE + 1x16A 3P CEE +1xSCHUKO+differential breaker +Volmeter Ammeter and Frequencymeter |
| 100TRL |
|
100 | 80 | 110 | 88 | 750 | 160 | 480 | 1350x1090x1140H | 1xTerminal board + 1x16A 3P CEE +1xSCHUKO+differential breaker +Volmeter Ammeter and Frequencymeter |
| 130TRL |
|
130 | 104 | 143 | 114.4 | 750 | 160 | 500 | 1350x1090x1140H | 1xTerminal board + 1x16A 3P CEE +1xSCHUKO+differential breaker +Volmeter Ammeter and Frequencymeter |
| 160TRL |
|
160 | 128 | 176 | 140.8 | 750 | 300 | 890 | 1585x1060x1865H | 1xTerminal board + 1x16A 3P CEE 1x125A 5P CEE+differential breaker +Volmeter Ammeter and Frequencymeter |
marca de motores y alternadores
